Bmc:

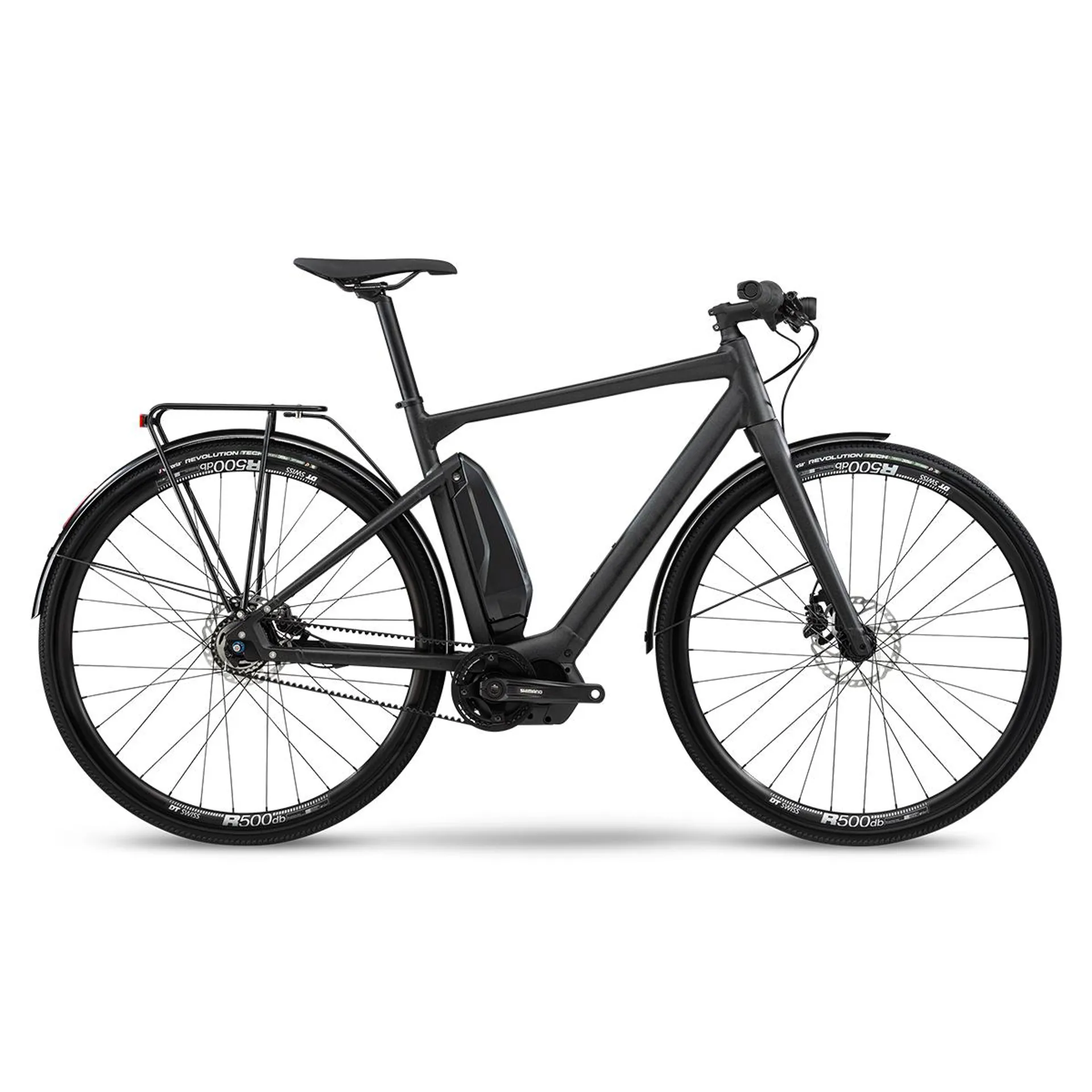

alpenchallenge amp city
everyday, amplified.
Setting new standards for urban e-bikes, the alpenchallenge amp city is designed for the rider seeking both unique style and practical functionality. Engineered to deliver a tarmac-taming performance in a sleek modern design, the alpenchallenge amp city is the ultimate e-bike for urban agility.
Concept
simply alpenchallenge
a fine expression of swiss design and engineering, the all-new alpenchallenge amp stands out with its sophisticated look, seamless integration and clever features. It’s in a class of its own.
Premium carbon performers and aluminium all-rounders lightweight carbon for top performance or trustworthy aluminium to do it all? The choice is yours to make.
Add in the smooth power transfer of the Shimano drive unit and you have the ultimate ride for unfettered adventures on a wide variety of terrains
comfort and control
micro travel technology features 10mm of tuned travel to provide not only the requisite traction for the Shimano drive unit but also improve comfort at the same time.
Natural handling
the central battery location creates a low center of gravity for agile and intuitive handling, bringing a new dimension to the e-bike riding experience.
Details
frameset
frame (carbon/alloy) alpenchallenge amp premium carbon, micro travel
technology / al-13 premium hydroformed, smoothwelded aluminium
fork (carbon/alloy) alpenchallenge amp premium carbon / alpenchallenge
amp premium aluminium
seatpost (carbon/alloy) alpenchallenge amp “d” premium carbon / round seatpost
frame technology (carbon) mtt - micro travel technology
sizes (carbon/alloy) s, m, l
frame weight (carbon) 1415g *
fork weight (carbon) 528g **
seatpost weight (carbon) 160g ***
cockpit (carbon) integrated cockpit design, w/ computer and camera
mount
frame (carbon/alloy)mtt - micro travel technology / rigid frame
internal cable routing
brake (carbon/alloy) flatmount brakes
frame (carbon/alloy) 12x142mm thru-axle
fork (carbon/alloy) tapered steerer 1-1/8” to 1-1/2”, 12x100mm thru-axle
seatpost (carbon/alloy) 15mm offset / 31.6mm diameter
brakes (carbon/alloy) flatmount standard 140 or 160 (f&r)
drivetrain (carbon/alloy) replaceable rear derailleur hanger/ belt drive dropouts
with replaceable rear derailleur hanger
tires (carbon/alloy) 42mm max width (38mm with fenders)****
misc. (carbon/alloy) integrated fender mounts -integrated rack mounts -
pletscher 40mm kickstand compatible
*avg. Frame weight, size m, lightest finish, incl. Derailleur
hangers
**avg. Fork weight, lightest finish, excl. Headset compression
device
***avg. Seatpost weight, lightest finish, incl. Clamping
hardware
****measured width
alpenchallenge amp city two
- alpenchallenge amp, flat mount, 12x142mm thru-axle
- al-13 premium hydroformed, smoothwelded aluminium
- s / m / l
- alpenchallenge amp premium auminium, flat mount, 12x100mm thru-axle
- shimano steps e-6100 250w, 60nm output
- shimano steps bt-e8014 418wh
- 1x5
- gates
- nexus 5 ihg
- gates belt drive
- nexus 5 spd
- shimano nexus 5, Shimano sw-ew7000
- shimano mt500 (180/160)
- bmc lsb 02
- bmc rsm 01
- bmc lsp 03
- selle royal 2058 drn
- formula, Shimano nexus 5
- dt swiss r500
- vittoria revolution tech, 37mm
- stealth (powder coat)
note
supernova mini 2 front light, integrated rear light, fenderset, rear carrier
kickstand ready (mounting plate included)
