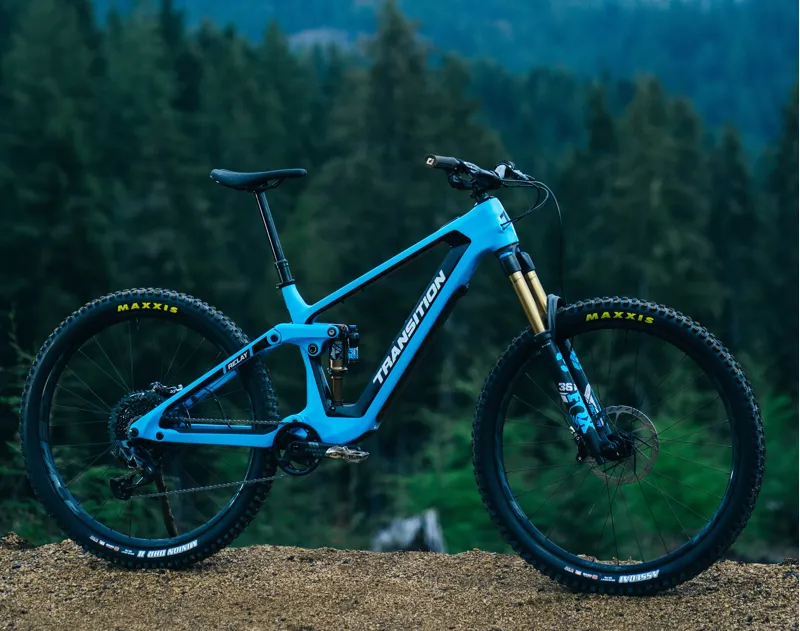

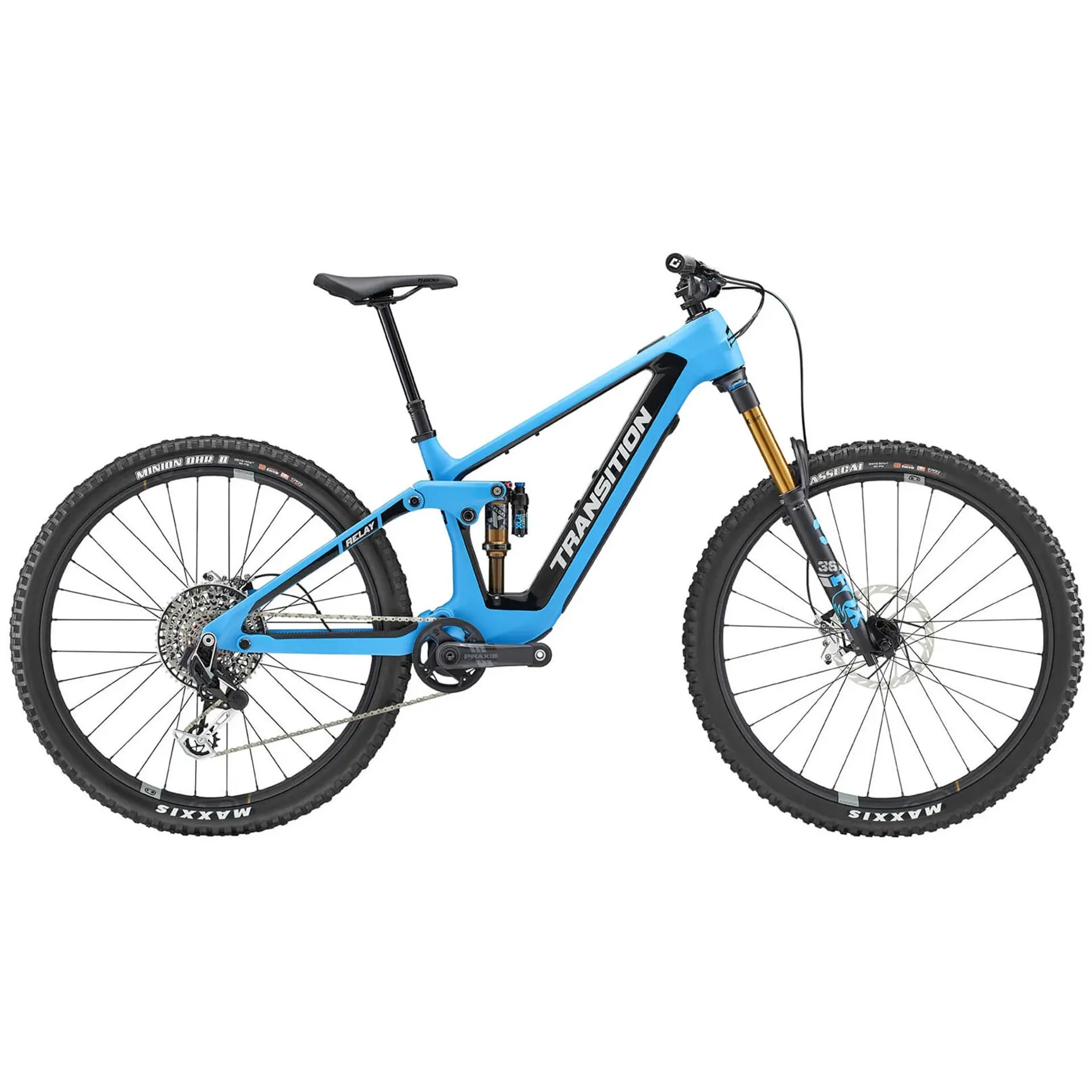

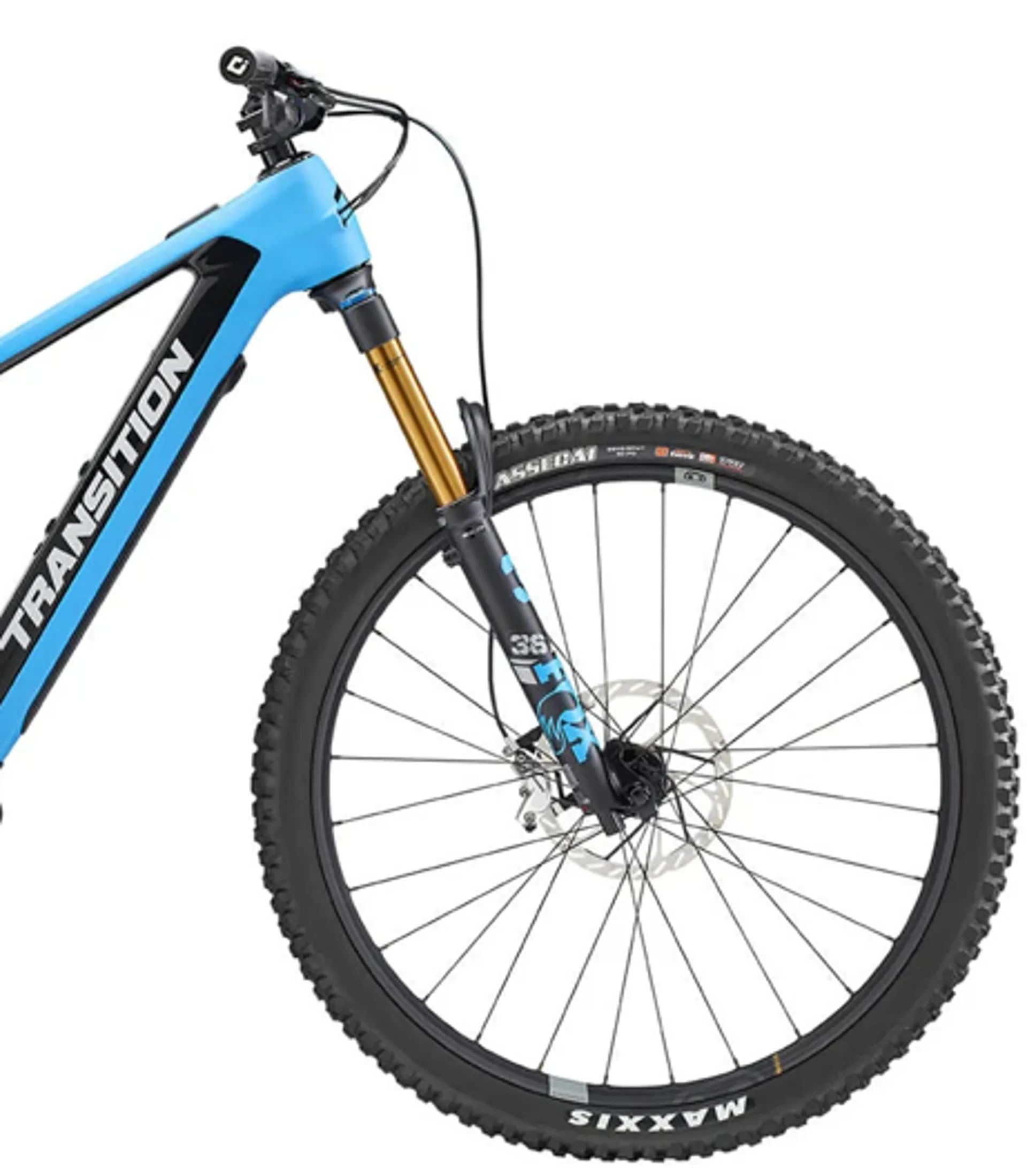

Transition Relay Carbon XX AXS Electric Mountain Bike in Tr Blue

Season:2023

Brand:Transition

Code:ULBrTSXA.XX.BRC.YALER.32.

The mountain biker's ebike

Living in uncharted territory, the Relay is a lightweight, mid-power ebike here for all your rides, battery or human powered. From square one, the relay was built with modularity in mind. Starting with a frame that accommodates 160 or l70mm travel from the front and rear, as well as dual 29 or mixed wheels, this bike is ready for any trail you point it down. At the core of this chariot is the Fazua Ride 60 system that provides 60Nm of torque to get you up the hill, with a 430Wh battery to keep you going for miles on end.

We have always wanted a bike that could provide both an ebike and a human powered experience in one chassis, and this is it. This system is light, efficient, and quiet. It provides a more intuitive and natural feel on the trail than many expect from a powered ride. The Relay is here to meet all of your mountain biking needs.

Two bikes in one

The Relay can be ridden as an ebike or a non-powered bike by simply removing the battery. The drive unit has such minimal drag that when you ride it powered off and without the battery, you'll quickly forget you still have a motor in your frame. During our development process, we tested it without the battery and found very little difference, even with the small amount of added weight from the motor that stays low and centred. This aspect of the Relay opens up avenues that many haven't addressed before. It fills the desires of a rider looking for the ebike experience, while also allowing riders to remove the battery to pedal with friends not on ebikes, shuttle, ride the bike part, or ride in areas not accessible to ebikes. You can quickly open the tool-free battery door, remove the battery from the frame, and let your legs do the rest. We think many riders are currently faced with the decision to purchase either an ebike or a non-powered bike, not both, and the Relay will be their answer.

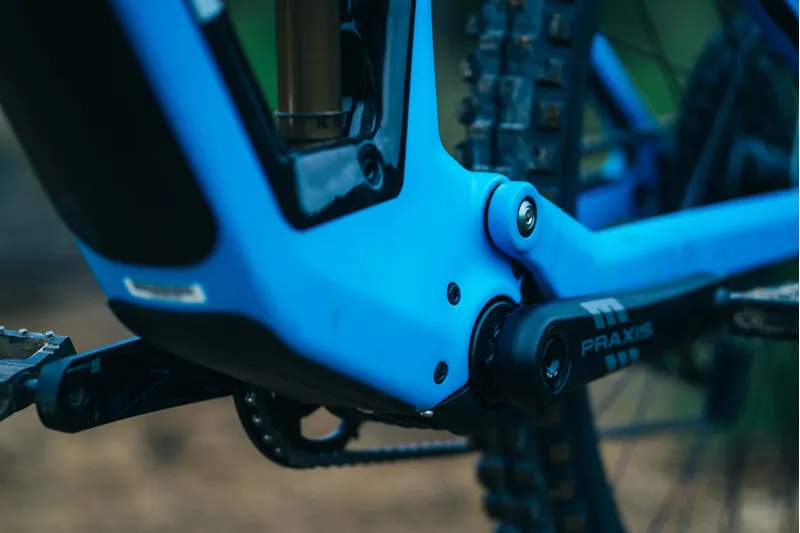

Fazua Ride60 motor

The Fazua Ride60 system has 60Nm or torque and 450W peak power with virtually no drag. This creates a very efficient system that punches far above what its numbers would suggest. With the smooth power delivery and extremely quiet motor, the Relay is one of the most intuitive and natural feeling ebikes, pushing the ride experience closer to that of a non-powered bike.

Fazua Energy 430Wh battery

The 430Wh battery is easily swappable and provides a range similar to what we are finding on larger battery, higher power ebikes. An external range extender will be available in the future.

Fazua ring controller

The simple and ergonomic ring controller has three ways of movement: up, down, and inward. Pushing up increases the power level, while pushing inward will activate walk mode. Additionally, holding the controller up will activate boost mode, giving you peak power output for roughly ten seconds of boost.

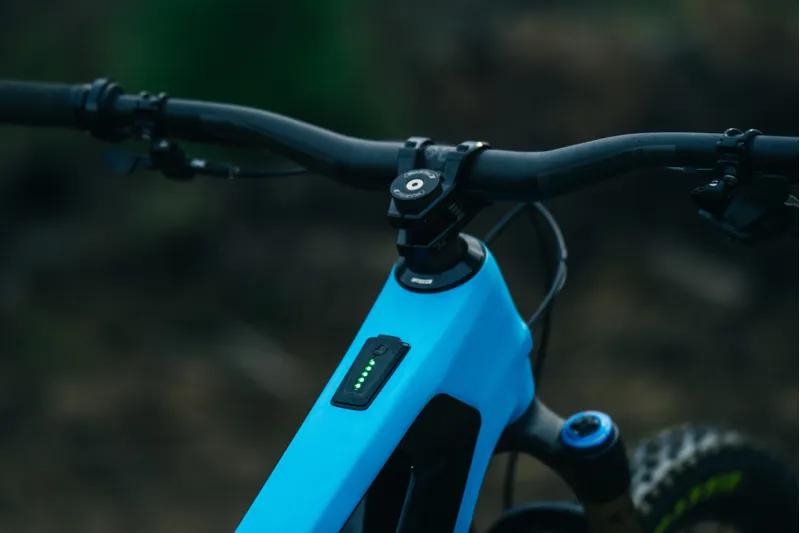

LED Hub

The simple interface on the top tube consists of 5 LED lights to give you an indication of power mode, battery life, and a connection port for your phone or other device. Out of the box, the relay has three power modes: breeze, river, and rocket. Breeze mode provides enough assistance to overcome the additional weight of the bike well and is very usable in many situations where you are not trying to go much faster than a normal biking pace. River mode is pre-set to match the amount of energy you are delivering to the pedals, providing a natural feel that can deliver across the range of power. Rocket mode provides full system power to help tackle the steepest and most challenging terrain.

FAZUA RIDE60 APP

The Fazua Ride60 app pairs with the Relay via Bluetooth technology. The Relay comes equipped with our well-thought-out profile, but you are able to customize your settings in all assistance modes fully. With Max Power and Support Relation, you are able to set the maximum mechanical power output and torque in each mode. Support Relation allows you to adjust the amount of assistance you receive in relation to the force you apply to the pedals.

Ramp Up allows you to adjust how responsive the system delivers the assistance in each mode. Whether you're an experienced rider looking for the most responsive and powerful setup, or someone who values more distance out of your rides, the app provides a comprehensive array of adjustments to tune your ride to your liking.

Frame features

  • Rideable without the battery. With modularity in mind, riders can choose if they want a powered or non-powered experience for their ride.
  • Tool-free removable battery. Quicklyremove the battery without the use of any tools.

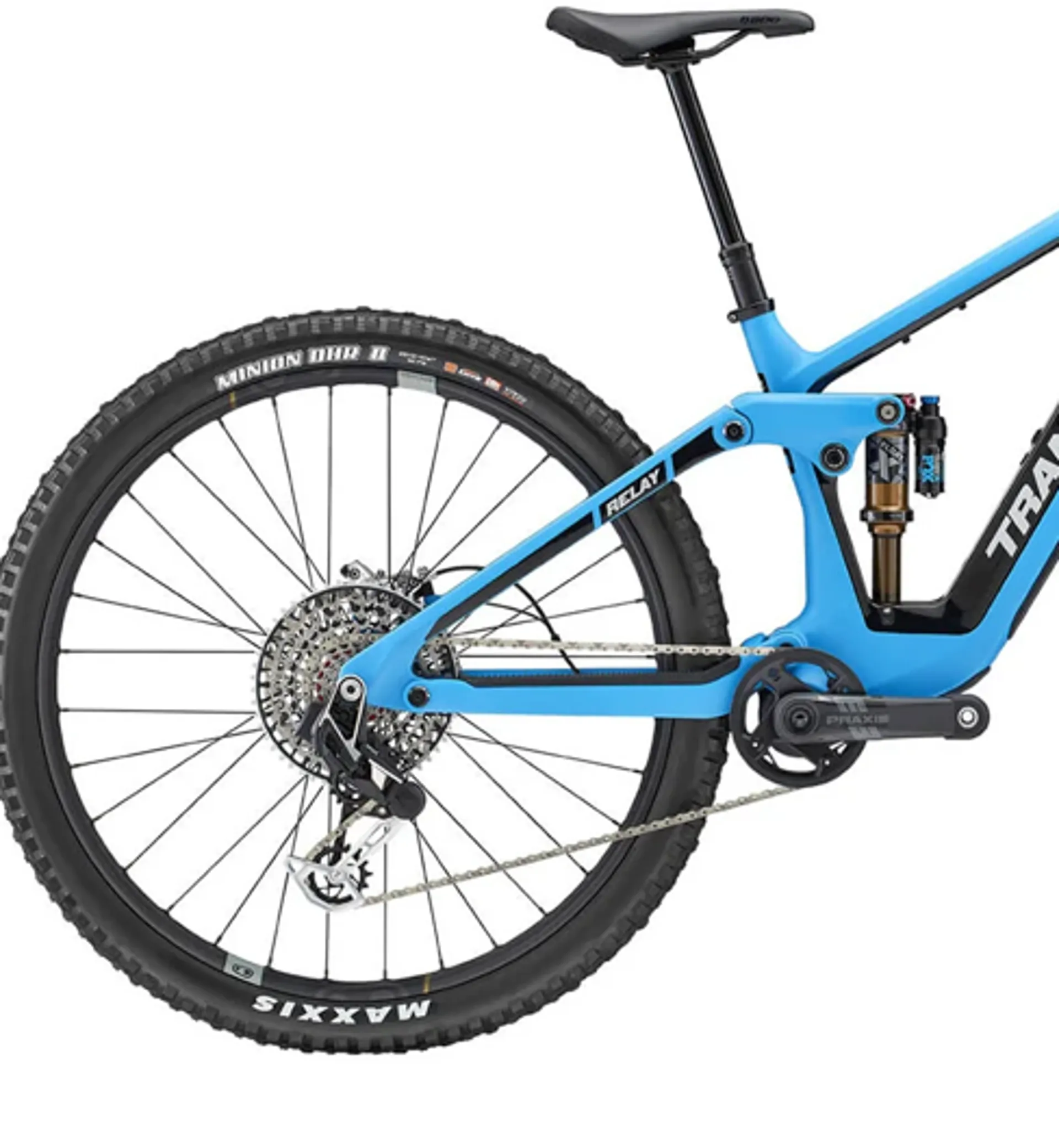

  • Flip chip on the lower shock mount. Theflip chip adjusts the geometry according to what rear wheel size is installed: 29 or 27.5".
  • Tyre Clearance Upto 2.6".

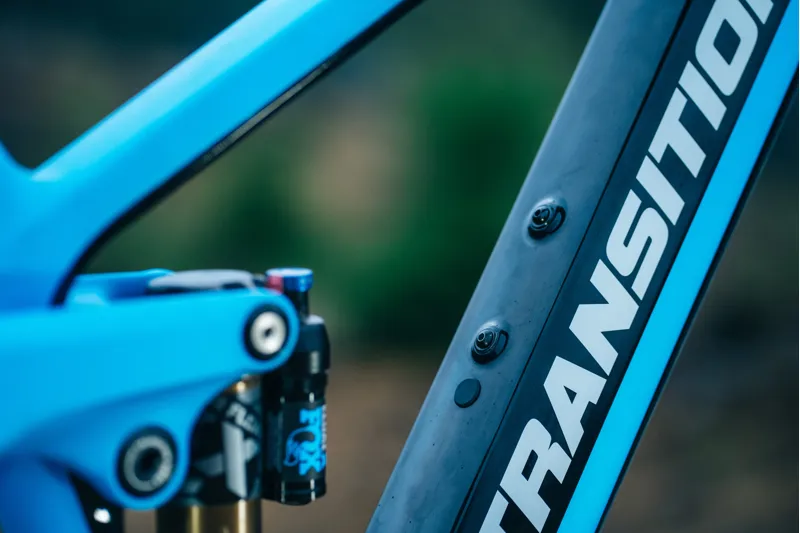

  • Gear accessory mount. mountAll Relay frames come equipped with a gear accessory mount on the underside of the top tube.

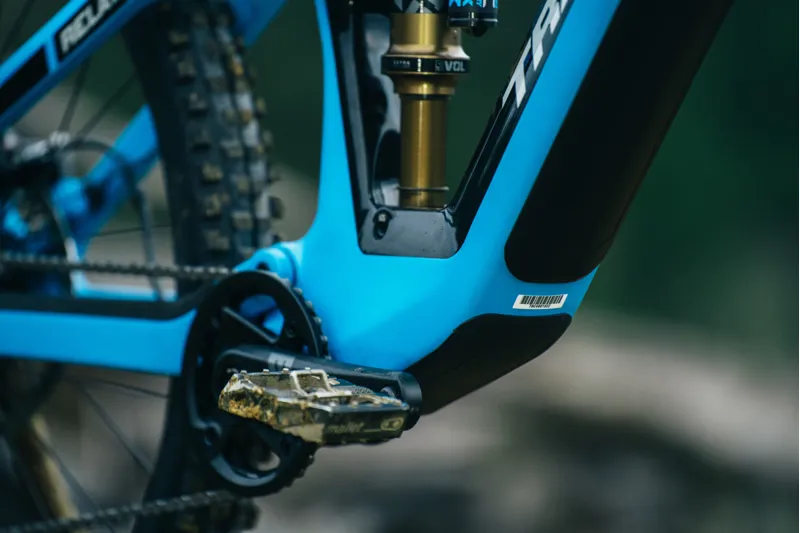

  • Chainring backguard. Designed in-house, the forged spider bashguard keeps the chain, chainring, and frame safe from impacts.
  • Cable routing. Fullyinternal cable routing is a breeze with easy access through the battery door, while ports in the headtube keep it quick and easy to work on the headset.
  • Long dropper insertion. Withan uninterrupted seat tube, you are free to drop your post all the way to the collar, allowing for long droppers on every size.

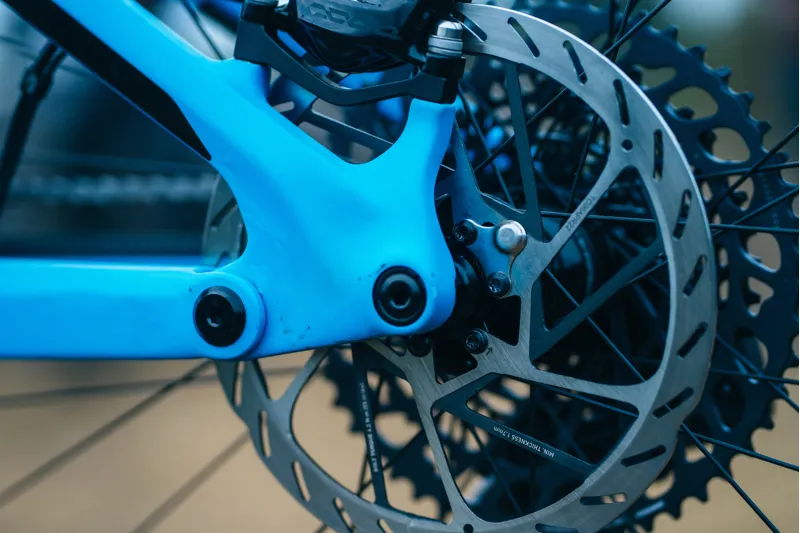

  • UDH The Relay utilizes SRAM's universal derailleur hanger.
  • Coil and air compatibleWith 26% progression, the rear suspension is fully compatible with both air and coil shocks without worrying about harsh bottom out.
  • Water bottle compatiblewater bottle fits inside the front triangle on MD-XXL sizes.
Technical Information
Carbon XX AXS
FrameRelay Carbon 160mm
Wheel Size29"
(X-Small 27.5")
Drive UnitFazua Ride 60
BatteryFazua Energy 430 Take Out
Rear ShockFox Float X Factory
(205 x 60mm)
ForkFox Float 36 Grip 2 Factory
(160mm)
HeadsetFSA No.55R
StemANVL Swage (40mm)
HandlebarOneUp Carbon
XS/SM (800x20)
MD/LG/XL/XXL (800x35)
GripsODI Elite Flow Lock-On
SaddleSDG Bel Air 3
SeatpostOneUp Dropper Post
XS (120mm)
SM (150mm)
MD(180mm)
LG/XL/XXL (210mm)
BrakesSRAM Code Ultimate Stealth
RotorsSRAM HS2 (200mm)
ShifterSRAM POD Ultimate Bridge MMX
DerailleurSRAM XX AXS Eagle Transmission
CassetteSRAM XS 1297 T-Type (10-52t)
ChainSRAM XX Eagle Transmission
CrankPraxis Carbon ETOR
(165mm, X-Small 160mm)
ChainringTransition Bash Spider
SRAM 32T Alloy E Ring (T-Type)
RimsCrankbrothers Synthesis Enduro Carbon
SpokesSapim D-Light (Front)
HubsIndustry Nine 1/1 (28H Front/32H Rear)
Tyre/FrontMaxxis Assegai 3C EXO+ 2.5
Tyre/RearMaxxis Minion DHRII 3C EXO+ 2.4
IncludedFazua Charger, SRAM AXS Battery Charger, Tubeless Valves & Sealant
Weight42.2 lbs / 19.14 kg (Size MD, Including Battery)
37.2 lbs / 16.89 kg (Size MD, Excluding Battery)
Sizing Information

XS
RELAY/PNW
SM
RELAY/PNW
MD
RELAY/PNW
LG
RELAY/PNW
XL
RELAY/PNW
XXL
RELAY/PNW
A.REACH410/405430/422460/452485/477510/502535/527
B.STACK (CARBON)590/588615/615628/634637/643646/652655/661
B.STACK (ALLOY)595/593620/620628/634637/643646/652655/661
C.EFFECTIVE TOPTUBE LENGTH523/532553/564586/597614/631642/665671/696
D.SEATTUBE LENGTH (CARBON)380390410430460490
D.SEATTUBE LENGTH (ALLOY)410410410430460490
E.EFFECTIVE SEATTUBE ANGLE79.7/79.379.1/78.478.4/77.777.8/77.177.3/76.677/76.3
SADDLE HEIGHT FOR EFFECTIVE SEATTUBE ANGLE560600660720780820
ACTUAL SEATTUBE ANGLE71/70.671/70.371/70.371/70.371/70.371/70.4
SEATTUBE OFFSET AT BOTTOM BRACKET909090909090
F.HEADTUBE LENGTH (CARBON)100100115125135145
F.HEADTUBE LENGTH (ALLOY)105105115125135145
G.HEADTUBE ANGLE64/63.664/63.364/63.364/63.364/63.464/63.4
H.CHAINSTAY LENGTH436442/440442/440448/446448/446448/446
I.WHEELBASE1167/11721208/12111244/12471280/12821309/13121338/1341
J.BOTTOM BRACKET DROP15/112525252525
K.ESTIMATED BOTTOM BRACKET HEIGHT340/343350350350350350
